Power Plant Coatings

Power Plant Coatings:Protection for Critical Infrastructure Power Plants(coal,gas,nuclear,hydro and renewable energyfacilities)require specialized coatings to protect against high temperatures,corrosion,chemical exposure and abrasion.Proper coating selection ensures longevity,safety and operational efficiency.

1. Key Areas Requiring Coatings in Power Plants

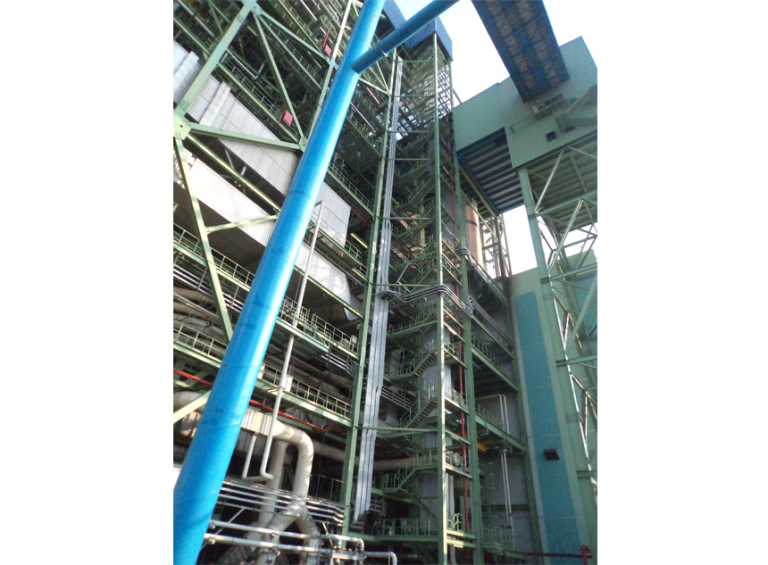

A. Boilers & High-Temperature Zones

• Challenges: Extreme heat (up to 1000°C+), thermal cycling, oxidation, and fly ash erosion.
• Coatings Used: Silicone Epoxy/Aluminum – Heat-resistant (up to 600°C).

Advantages:

• Excellent adhesion and waterproofing
• Resistant to soil stress and cathodic

Ceramic Coatings – For superheaters and furnace walls (1000°C+).

• High-Temp inorganic Zinc – Protects against corrosion under insulation (CUI).

B. Turbines & Generators

• Challenges: Steam/condensate exposure, thermal stress, and wear.
• Coatings Used: Epoxy-Phenolic Coatings – Chemical and heat resistance.
• Polyurethane Coatings – Abrasion and moisture protection.
• Thermal Spray Coatings (WC-Co, CrC-NiCr) – For blade erosion resistance.

C. Cooling Towers & Water Systems

• Challenges: Moisture, algae, chemical treatments (chlorine, biocides).
• Coatings Used: Epoxy & Coal Tar Epoxy – Waterproofing and chemical resistance.
• Polyurea/Polyurethane – Fast-curing, flexible for concrete/metal.

D. Flue Gas Desulfurization (FGD) Systems

• Challenges: Sulfuric acid, chlorides, abrasion from slurry.
• Coatings Used: Glass-Flaked Epoxy/Vinyl Ester – Acid-resistant.
• Rubber Linings (Neoprene, Hypalon) – For scrubbers and ducts.

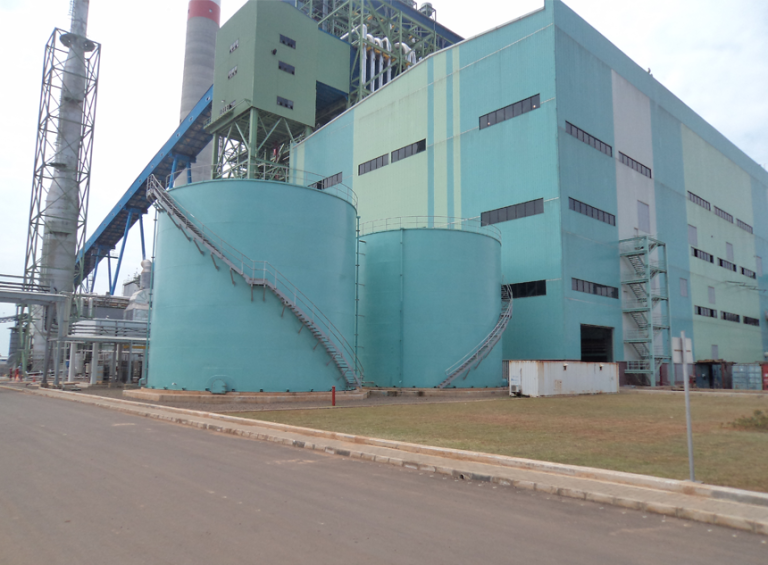

E. Fuel Storage Tanks (Coal, Oil, Gas, LNG)

• Challenges: Corrosion from fuels, temperature fluctuations.
• Coatings Used: Zinc Silicate + Epoxy Topcoat – For steel tanks.
• Thermoplastic Linings (PP/PE) – For chemical resistance.

F. Concrete Structures (Foundations, Containments, Pipes)

• Challenges: Carbonation, chloride ingress, cracking.
• Coatings Used:
  • Epoxy Mortars – For crack bridging.
  • Acrylic/Silane Sealers – Water repellence.

2. Selection Criteria for Power Plant Coatings

3. Application & Inspection Best Practices

• Surface Preparation: Abrasive Blasting (SA 2.5 for steel, SSPC-SP13 for concrete).
• Solvent Cleaning (Remove oils, salts).
• Application Methods:
  • Spray (Airless/Conventional) – For large steel surfaces.
  • Brush/Roller – For touch-ups and complex geometries.
  • Thermal Spray (HVOF, Arc Spray) – For turbine blades.
• Quality Control & Testing:
  • Holiday Detection (Spark testing for pinholes).
  • Adhesion Testing (Pull-off tests per ASTM D4541).
  • Dry Film Thickness (DFT) – Checks coating consistency.

4. Common Coating Failures & Solutions

5. Industry Standards & Certifications

• ISO 12944 (Corrosion protection of steel structures).
• NACE SP0188 (Discontinuity testing).
• ASME Section IX (Boiler & pressure vessel coatings).
• ASTM D7234 (Adhesion testing).

Final Recommendations by Power Plant Type

• Coal Plants:
  • High-temp coatings for boilers

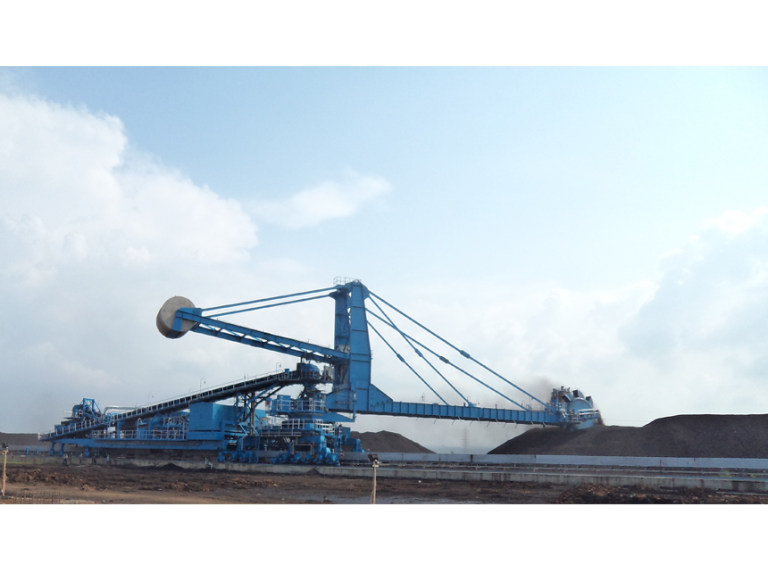

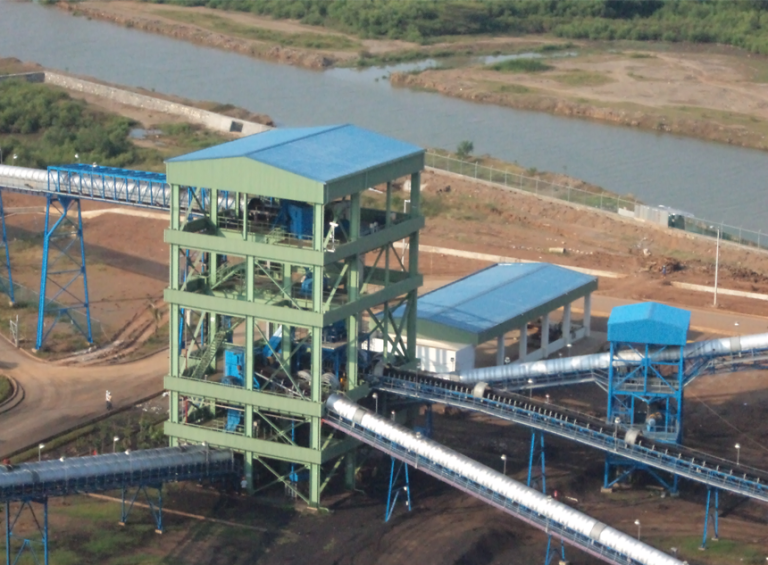

  • Abrasion-resistant coatings for coal handling
• Gas Turbine Plants: Thermal barrier coatings (TBCs) for combustion sections.
• Nuclear Plants: Epoxy/vinyl ester for radiation resistance.
• Hydroelectric Plants: Immersion-grade epoxy for underwater areas.
